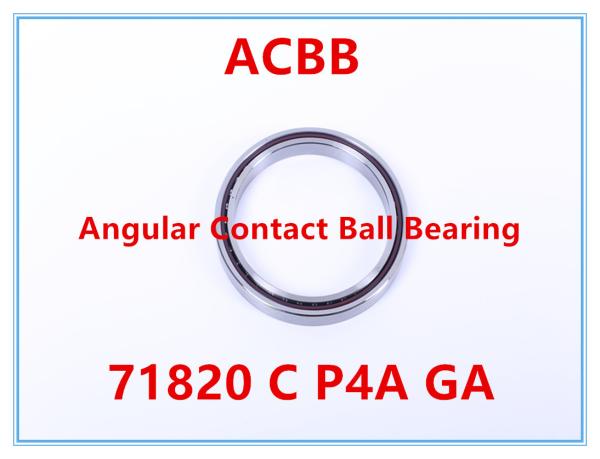

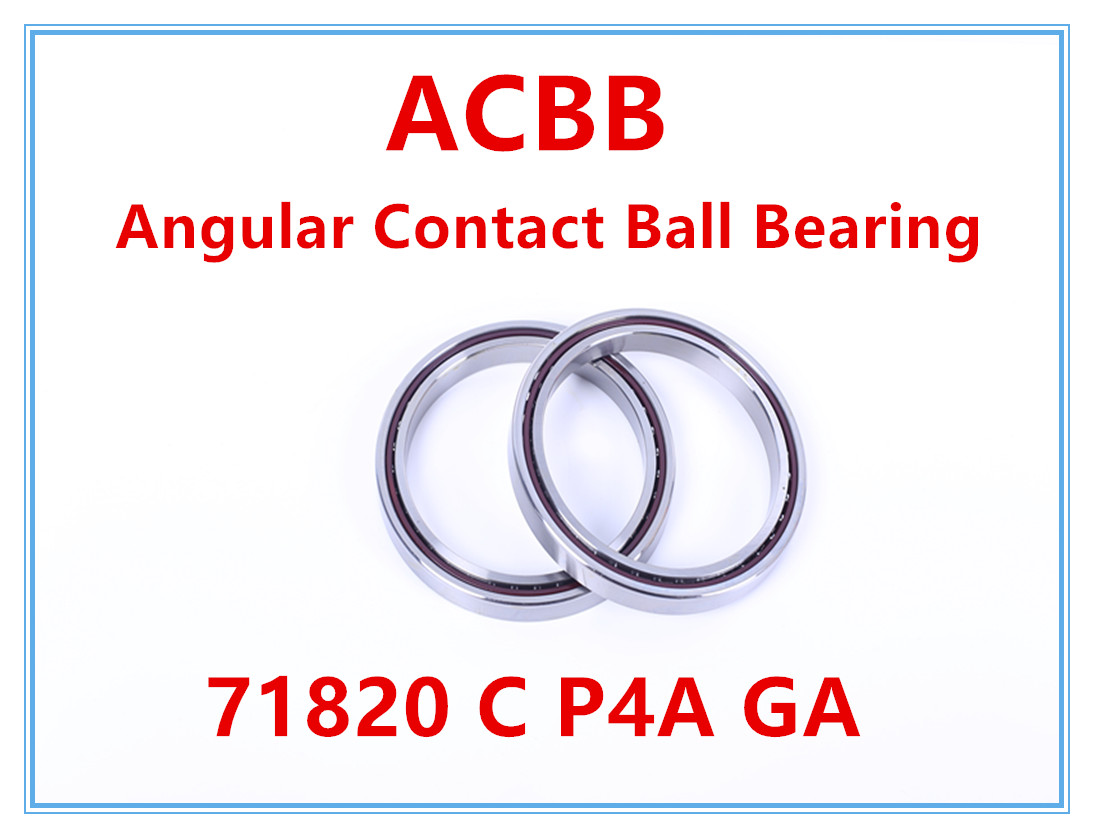

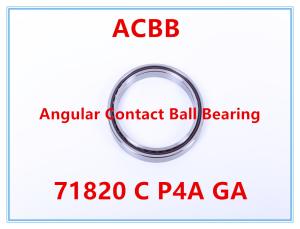

71820 C P4A GA

Name: 71820 C P4A GA
Brand: ACBB
Price: 1 USD

Brand Name : ACBB

Model Number : 71820 C P4A GA

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 30 PCS

Packaging Details : Company brand packaging.

Product name : Angular Contact Ball Bearing

Product model : 71820 C P4A GA

Characteristic : High speed and high rigidity

Rotational speed : 8500RPM-9500RPM

Angle : C/CD/AC/A5/ACD/A5/E

Preload : Light preload

Rolling Body : Steel Ball

Holder : Bakelite holder

Contact Now

Angular Contact Ball Bearing 71820 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 8500 to 9000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

718 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)			rsmin	rs1min	(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	rsmin	rs1min	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
71818C	90	115	13	1.00	0.30	21.20	23.60	11000	18000	14000	22000	91	337	724
71818AC	90	115	13	1.00	0.30	20.00	22.00	9500	16000	12000	19000	110	495	1116
71819C	95	120	13	1.00	0.30	21.60	24.50	10000	17000	13000	20000	92	343	737
71819AC	95	120	13	1.00	0.30	20.40	22.80	9000	15000	11000	18000	111	504	1137
71820C	100	125	13	1.00	0.30	21.60	25.00	9500	16000	12000	19000	91	341	735
71820AC	100	125	13	1.00	0.30	20.40	23.60	8500	14000	10000	17000	109	500	1132
