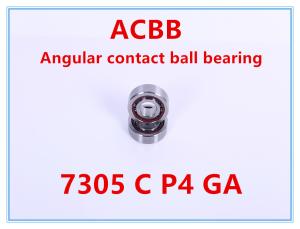

7305 C P4 GA Angular Contact Ball Bearing

Name: 7305 C P4 GA Angular Contact Ball Bearing
Brand: ACBB
Price: 1 USD

China 7305 C P4 GA Angular Contact Ball Bearing wholesale

Brand Name : ACBB

Model Number : 7305 C P4 GA

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 30 PCS

Packaging Details : Company brand packaging.

Product name : Angular Contact Ball Bearing

Model number : 7305 C P4 GA

Characteristic : High speed and high rigidity

Rotational speed : 15000RPM-16000RPM

Angle : C/AC/A5

Preload : Light preload

Rolling Body : Steel Ball

Holder : Bakelite holder

Contact Now

Angular Contact Ball Bearing 7305 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on the spindle of CNC machine tools. The operating speed reaches 15000 to 16000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

73 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)					(KN) BasicRatedload		(RPM)
Bearing No	d	D	B	rs(min)	rs1(min)	Cr	Cor	Grease Lubrication	Oil Lubrication
7300 C	10	35	11	0.6	0.3	9.50	4.60	22000	29000
7301 C	12	37	12	1.0	0.6	10.50	4.95	19000	26000
7302 C	15	42	13	1.0	0.6	12.50	6.65	17000	22000
7303 C	17	47	14	1.0	0.6	14.80	8.00	15000	20000
7304 C	20	52	15	1.1	0.6	17.30	9.65	13000	18000
7305 C	25	62	17	1.1	0.6	24.40	14.60	13000	15000
7306 C	30	72	19	1.1	0.6	31.00	20.50	9600	13000
7307 C	35	80	21	1.5	1.0	36.50	24.20	8400	11000
7308 C	40	90	23	1.5	1.0	45.00	30.50	7400	9900

7305 C P4 GA Angular Contact Ball Bearing
